Optional Configurations
The Off-Road Dumper Truck is designed for construction sites, mines, underground tunnels, orchards, forestry, river dredging and mountain material transport. Optional components can upgrade load capacity, braking safety, off-road performance, cargo volume, driving comfort and self-loading ability.
Cab & Body Options
- Full enclosed cab
Protects the driver from rain, dust, wind and flying stones. Recommended for mines, construction sites and all-weather outdoor work. - Standard canopy / simple cab
Suitable for lower-budget applications and basic outdoor protection. - Side-opening rear door
Makes loading and unloading easier for large stones, timber and equipment. - Inner cargo canopy
Helps protect grain, cement, powder and other materials from rain. - On-board ladder
Convenient for vehicle inspection and maintenance.
Cargo Box Options
- Standard 4-wheel side baffles
Suitable for light-load transport, orchards, nurseries and rural roads. - 6-wheel side baffles
Designed for 4-to-6-wheel modified heavy-duty models. - Extended cargo box
Increases single-trip loading volume by around 30%-60%, suitable for sand, soil, ore and construction materials. - Reinforced cargo box
Recommended for heavy stones, ore, muck and long-term engineering use.
Wheel & Chassis Options
- Steel wire tires
Stronger puncture resistance and better load capacity than standard nylon tires. Recommended for mines, gravel roads and heavy-duty use. - 8×18 reinforced frame
Improves bending and torsion resistance under heavy loads. - 4-wheel to 6-wheel modification
Increases ground contact area, improves load capacity and reduces sinking on soft or muddy roads.
Engine Options
- 28HP single-cylinder diesel engine
Suitable for light transport, orchards, nurseries and narrow rural roads. Recommended load: 3-5 tons. - 32HP single-cylinder diesel engine
Mainstream configuration for construction sites, small mines and mountain transport. Recommended load: 5-7 tons. - 35HP single-cylinder diesel engine
Stronger torque for steep slopes, underground tunnels and heavy-duty 6-wheel models. Recommended load: 7-10 tons.
Brake Options
- Vacuum-assisted hydraulic brake
Suitable for light-load 4-wheel vehicles and gentle mountain roads. - Air-over-hydraulic brake
Stronger braking force, recommended for 32-35HP models and medium-heavy construction use. - Spring brake
Top braking configuration for heavy loads, long downhill roads, underground slopes and 6-wheel models. - Brake water sprinkler system
Available in plastic tank, iron tank and air-driven type. Recommended for continuous downhill operation and heavy-load braking.
Steering Option
- Mechanical power steering
Reduces steering effort under full load and in narrow working areas. Recommended for mines, tunnels and frequent turning conditions.
Lifting & Loading Option

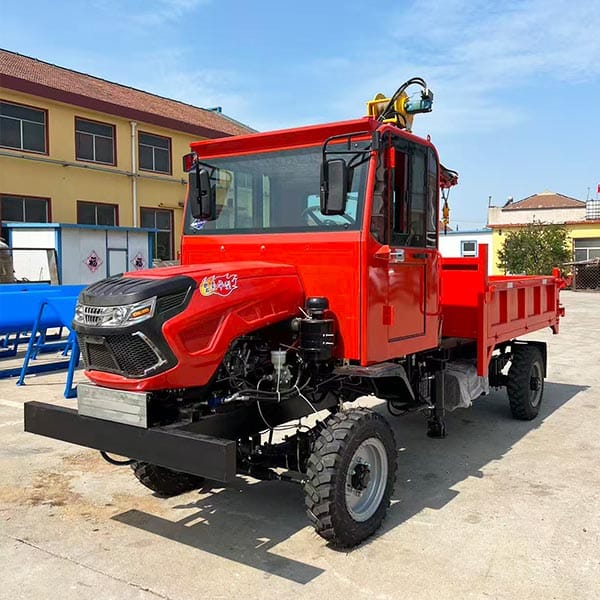

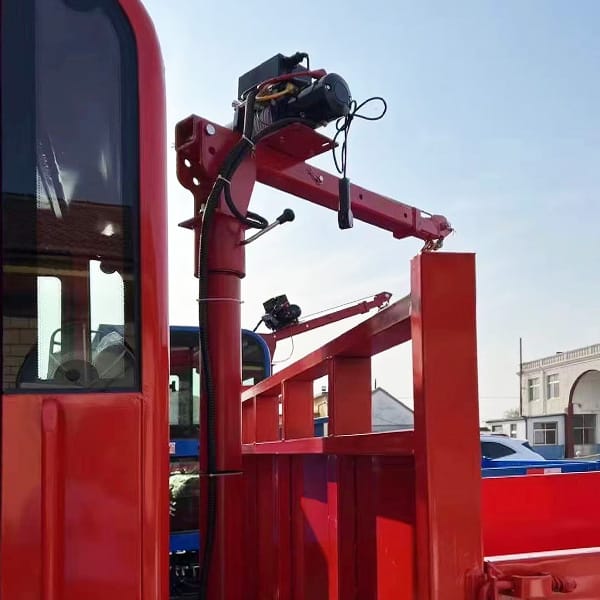

- On-board hydraulic crane
Allows self-loading and self-unloading of stones, pipes, timber and equipment. Recommended for stone yards, forestry and infrastructure projects.
Axle Options
- 212 front axle + 130 rear axle
Suitable for narrow roads, orchards and light-load transport. - 50 front axle + 50 rear axle
Recommended for general construction sites and small mines. - 60 / 80 / 1061 heavy-duty axles
Suitable for 8-12 ton heavy-duty transport, 6-wheel models and underground mining.
Gearbox & Transfer Case Options
- Model 10 gearbox
Low-speed, high-torque, suitable for single-cylinder engines and heavy climbing. - Model 130 / 140 gearbox
Higher driving speed, suitable for mixed mountain and flat road use. - Model 145 full-synchronized gearbox
Top-grade option for heavy-duty mining vehicles, smoother shifting and longer service life. - 130 / 330 / 530 transfer case
Provides 4WD power distribution and torque amplification. Heavy-duty transfer cases are recommended for steep slopes and high-load applications.
Recommended Configuration by Application
- Orchard / Nursery / Rural Light Duty: 28HP, 4-wheel chassis, 212 front axle + 130 rear axle, vacuum-assisted brake, standard side baffles.
- Small Construction Site / Mini Mine: 32HP, 50 front and rear axles, air-over-hydraulic brake, steel wire tires, iron water sprinkler.
- Underground / Heavy Mining / Long Downhill: 35HP, 6-wheel chassis, 60/1061 axles, spring brake, air-driven water sprinkler, reinforced frame, 145 gearbox, 530 transfer case.
- Mixed Road Transport: 130/140 gearbox, part-time 4WD, air-over-hydraulic brake or spring brake, steel wire tires, suitable for both mountain roads and flat roads.
